Transmission Update
I have learned a ton playing with this e46. The engine upgrade to ZHP was very satisfying for 40k. What I did not know was that driving this new power plant hard was going to kill the transmission for a number of reasons.
First the 5HP19TT transmission cam stock in the 325i at 187HP and a mild 5,500 rpm. The upgrade to ZHP with a tune pushes this to around 270 HP and 6,800 rpm.

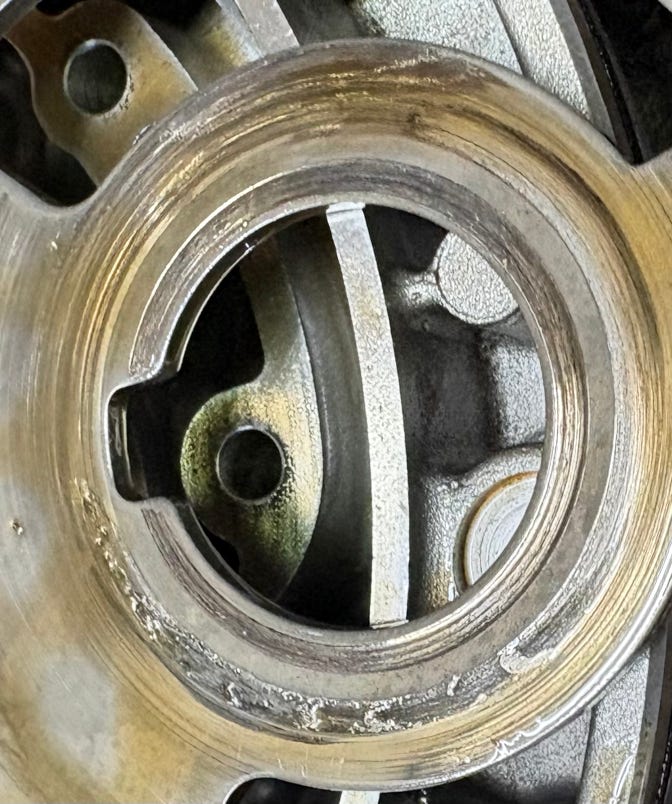

Over the 40k this performance difference served to slowly build up residue from the added torque and slippage to the point where the filter got plugged and starved the pump for oil and imminent failure.
Since then I have learned that the 5HP19TU transmission is a better choice, having various improvements.

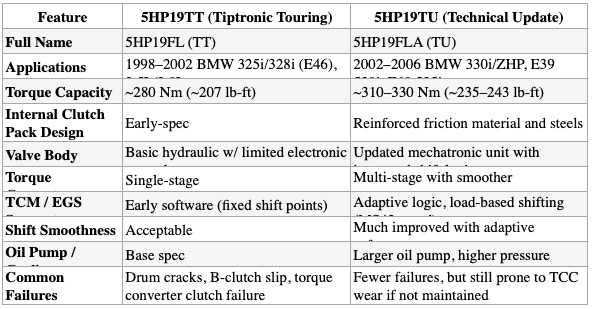

🔧 Overview: 5HP19TT vs 5HP19TU
🔥 Key Improvements You Get with the TU
✅ 1. Higher Torque Capacity
• Handles up to 310–330 Nm comfortably.
• ZHP engines (M54B30) produce ~222–250 lb-ft, so the TU matches better than the TT (which maxes out below this).
✅ 2. Adaptive Shift Logic
• TU versions use newer EGS programming, which:
◦ Learns driving habits
◦ Adjusts shift points and line pressure dynamically
• Pairs beautifully with MS43 ZHP software for aggressive or smooth behavior depending on conditions
✅ 3. Stronger Internal Hardware
• Upgraded friction materials on clutch packs
• Redesigned B-clutch and input drums (less prone to cracking)
• More robust torque converter lock-up clutch
✅ 4. Better Tuning and Software Support
• TU works with ZHP-calibrated TCM/EGS modules
• Supports flashing with WinKFP or loading custom maps
• Works well with modern tuning tools like xHP Flashtool (if supported)
✅ 5. More Compatible with M54B30 Upgrades
• Designed to support heavier vehicles (E39, E60)
• Comes from factory behind the exact engine you're using (ZHP M54B30)

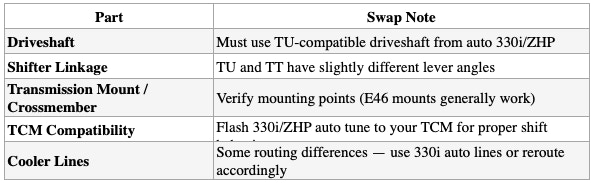

⚠️ Swap Considerations
Swapping to the 5HP19TU gives you:
• 🔼 Higher torque headroom
• 🔄 Smoother, smarter shifting
• 🧰 Better tuning compatibility
• 🧱 Stronger internals for reliability
• 🧩 Better match for your ZHP engine’s behavior
